HZJ79 LAND CRUISER
STANDARD SPECIFICATIONS

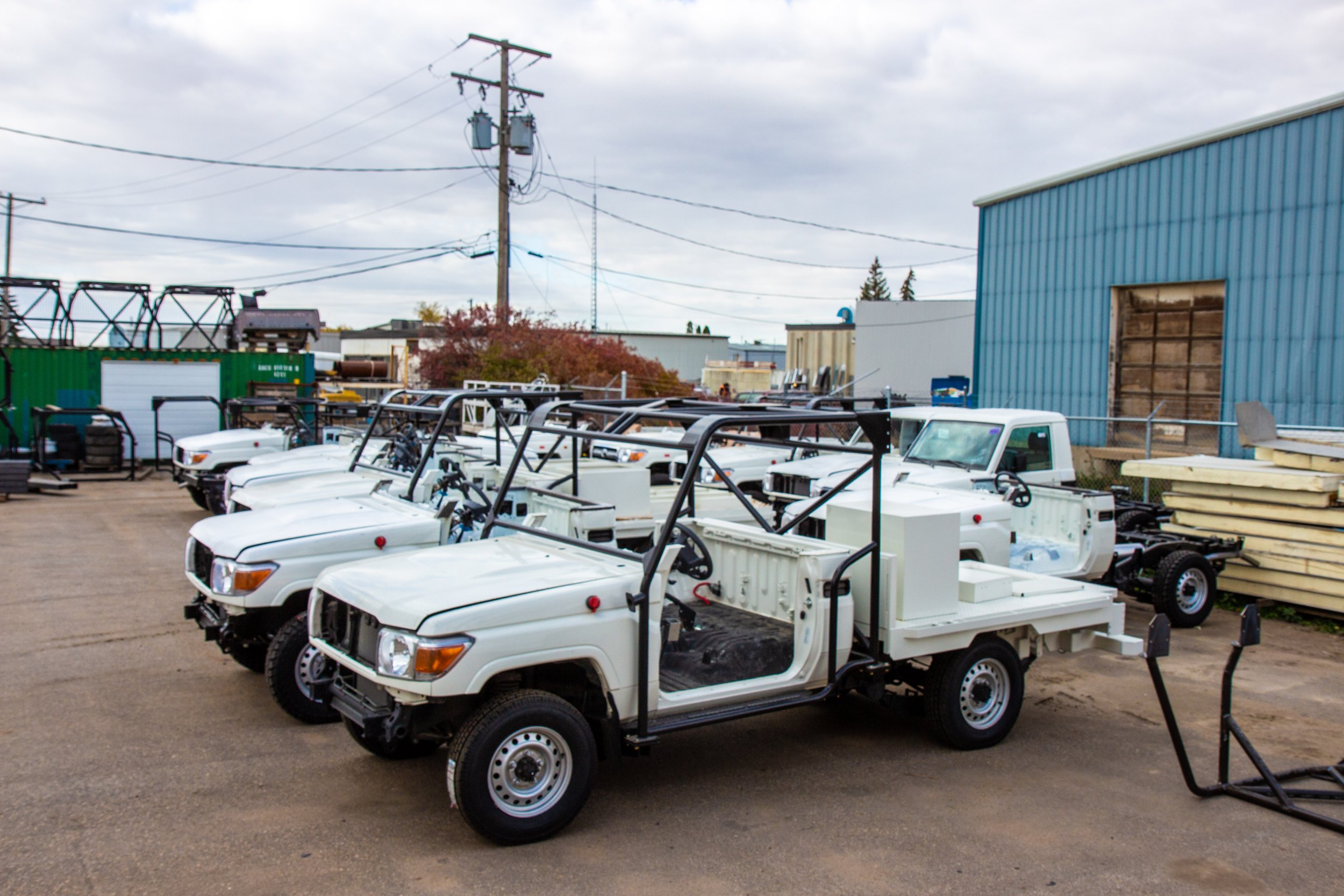

Multiple white utility vehicles with metal frames, parked in an industrial yard.
row of white utility vehicles parked outside a warehouse
LandcrusierStock-00005 c.jpg
Several white utility vehicles with roll cages in an industrial lot, with buildings and equipment in the background.
Line of military vehicles parked in front of a blue warehouse.
Disassembled white pickup trucks in a workshop parking lot, with chassis, engines, and other parts scattered around. Industrial background with scattered metal materials.

2023 Toyota Land Cruiser HZJ79 – The Ultimate Base for Underground Mine Vehicles

Built for Durability, Engineered for Mining

The 2023 Toyota Land Cruiser HZJ79 Cab & Chassis is the foundation for the most dependable underground mine vehicles. Renowned for its rugged durability, reliability, and power, this model serves as the perfect base to be customized for the harshest mining conditions.

Base Specifications

Power & Performance

  • Engine: 1HZ 6-Cylinder OHC Diesel 4164 cc

  • Horsepower: 134 HP @ 4000 RPM

  • Torque: 207 lb-ft @ 2000 RPM

  • Compression Ratio: 22.7:1

  • Bore & Stroke: 94 mm x 100 mm

Transmission & Drivetrain

  • Transmission: 5-Speed Manual (R151)

  • Gear Ratios:

    • 1st: 4.313

    • 2nd: 2.330

    • 3rd: 1.436

    • 4th: 1.000

    • 5th: 0.838

    • Reverse: 4.220

  • Transfer Case: 2-Speed Hi: 1.000, Low: 2.296

  • Final Drive Ratio: 4.300 LSD

Braking System

  • Front Brakes: Disc 322×32 mm

  • Rear Brakes: Drum 295 mm

Wheels & Tires

  • Wheels: 6.50F x 16

  • Tires: 7.50 x 16 Bias Ply 8-Ply Rating Off-Road

Weight & Capacity

  • Curb Weight: 1895 – 2205 kg

  • Gross Vehicle Weight Rating (GVWR): 3400 kg (7500 lbs)

  • Gross Axle Weight Rating (GAWR):

    • Front: 1460 kg (2866 lbs)

    • Rear: 2300 kg (5071 lbs)

  • Towing Capacity:

    • 3500 kg (7700 lbs) with trailer brakes

    • 750 kg (1650 lbs) without brakes

Suspension & Steering

  • Front Suspension: Coil Springs

  • Rear Suspension: Semi-Elliptical Leaf Springs

  • Steering: Power-Assisted Recirculating Ball

Clutch & Drivetrain

  • Clutch: Single Dry Plate with Diaphragm Springs, Hydraulic Cylinders, Power Assist

Why Choose the Toyota Land Cruiser HZJ79LM for Mining?

  • Legendary Reliability – Proven to endure extreme underground conditions.

  • Customizable Platform – Ideal for conversion into underground personnel carriers, maintenance trucks, and more.

  • Heavy-Duty Design – Built to handle high payloads and rough terrain.

  • Trusted by Mining Operations Worldwide – A preferred choice for underground fleets.

Unfinished white truck chassis and bodies in assembly yard with various auto parts and equipment.

Customize Your Land Cruiser with Ens Industrial

Ens Industrial offers complete customization solutions for the 2023 Toyota Land Cruiser HZJ79LM, transforming it into the ultimate mine vehicle with industry-specific modifications including ROPS/FOPS, custom decks, tool storage, and advanced safety features.

Ens Industrial – The Leader in Custom Underground Mine Vehicles.
